What a Seized AC Compressor Actually Looks Like: A Post-Mortem from a Kent Service Call

The Sudden Silence: When Your AC Stops and the Breaker Trips

If you want to know What a Seized AC Compressor Actually Looks Like: A Post-Mortem from a Kent Service Call provides the perfect example: you flip the thermostat to cool, but instead of a refreshing breeze, there is only a sudden silence, followed by a loud click at the electrical panel. That sharp click is your circuit breaker tripping, instantly cutting power to the outdoor unit. When an air conditioning system repeatedly trips the breaker the moment it tries to start, it is rarely just a minor electrical glitch. More often than not, it is the primary symptom of a catastrophic mechanical failure known as a seized compressor.

In our years serving Puyallup and Kent at Greenhead Heating & Electrical LLC, our team frequently encounters this exact breakdown during the early fall transition. To understand how to address this issue, it helps to start with our comprehensive air conditioning services and look at what happens behind the metal fan guards of your outdoor unit.

The moment a homeowner realizes their AC has completely failed is incredibly frustrating, especially when it happens during the early fall transition after peak summer load. For months, the system has worked tirelessly to keep the indoor climate comfortable. Then, seemingly without warning, it refuses to turn on. However, a seized compressor does not actually happen overnight. It is the cumulative result of long-term wear, extreme heat stress, and skipped routine maintenance.

When a compressor is "seized" or "locked up," it means the internal mechanical components have physically fused together. The motor is trying with all its might to turn mechanisms that are jammed solid. This creates an enormous electrical draw, which the circuit breaker detects as a massive safety hazard, shutting the system down to prevent an electrical fire.

Before making any major decisions about repairing or replacing your HVAC equipment, it is crucial to understand the physical reality of what has broken down inside. By conducting a technical post-mortem of a seized unit, you can see exactly why this specific failure is so severe and why simply flipping the breaker back on will never solve the underlying problem.

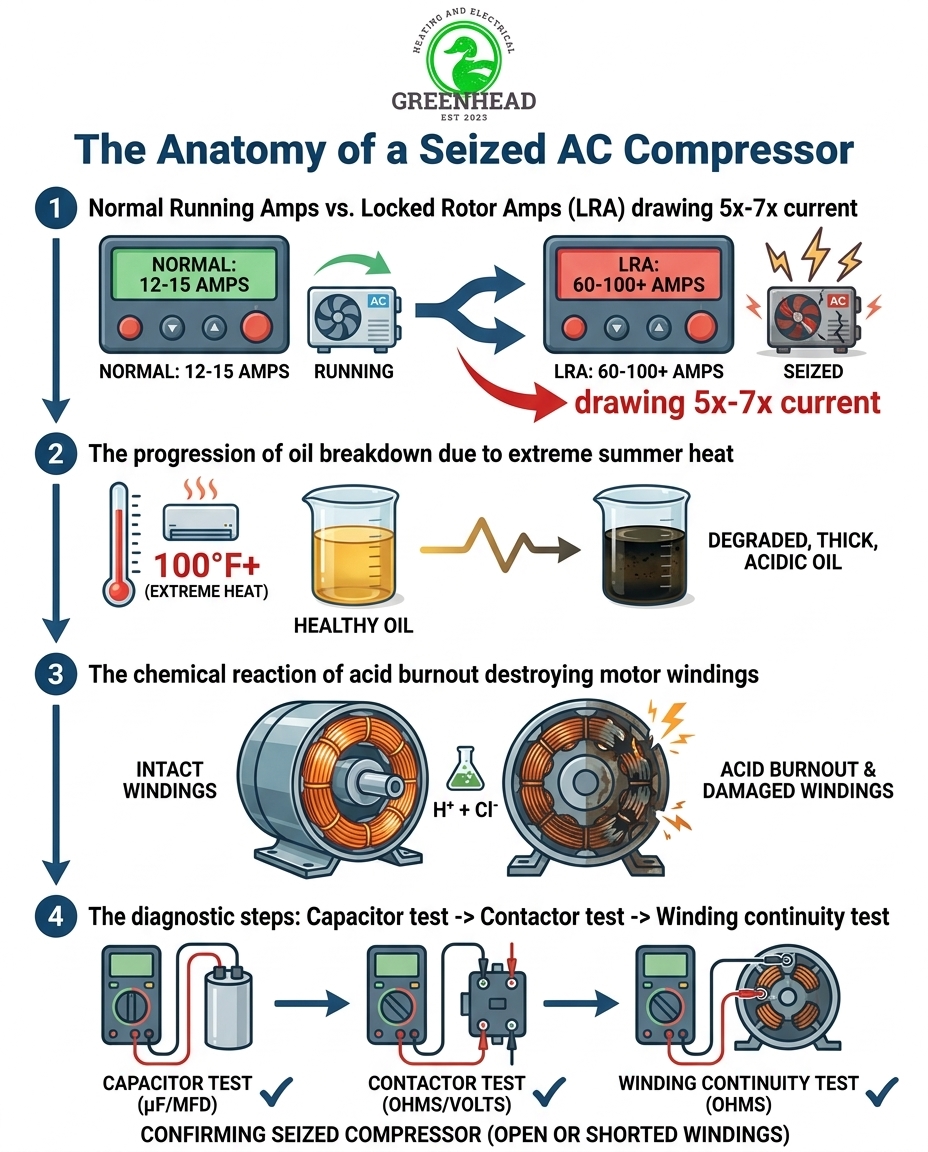

Inside the Black Box: What a 'Seized' Compressor Actually Means

To fully grasp why a locked-up compressor is a fatal blow to an air conditioning unit, you have to look inside the sealed black steel shell that sits at the center of your outdoor condenser. The compressor is the undisputed heart of the AC system. Its sole job is to pump chemical refrigerant through the copper lines, compressing warm, low-pressure gas into hot, high-pressure gas so the heat can be released outside.

Across neighborhoods in Kent and Puyallup WA, our technicians see compressors work incredibly hard to manage indoor humidity and temperature. When that central pumping mechanism fails, the entire cooling cycle stops dead in its tracks.

The Mechanics of a Lock-Up

Inside that sealed black shell, there are intricate moving parts—typically either pistons or metal scrolls—that rotate or pump at high speeds. Because these parts are made of heavy-duty metal and move so quickly, they require constant, flawless lubrication to prevent friction.

When a compressor seizes, it means that lubrication has failed. Without a slick barrier of oil, the metal components grind directly against one another. The resulting metal-on-metal friction generates extreme internal temperatures. Eventually, the heat becomes so intense that the moving parts expand, warp, and physically weld themselves together. Once those metal scrolls or pistons are fused, no amount of standard electrical power can force them to move again. The mechanical breakdown is irreversible.

Understanding Locked Rotor Amps (LRA)

When the thermostat sends a signal to turn on the AC, the compressor's electrical motor receives a surge of power to start spinning. But if the physical parts are welded together, the motor cannot turn. This creates a dangerous electrical condition measured in Locked Rotor Amps (LRA).

The electrical reality of a lock-up:

• Normal Running Current: A healthy compressor draws a steady, moderate amount of electrical current to keep the parts moving smoothly.

• The LRA Spike: When the motor tries to turn a frozen mechanism, it draws 5 to 7 times its normal operating current in a desperate attempt to break the mechanical jam.

• The Breaker Trip: Your home's electrical panel is designed to detect this massive, abnormal surge. It trips the breaker instantly to prevent the wires from overheating and catching fire.

This is exactly why repeatedly resetting a tripped AC breaker is incredibly dangerous. Every time you force the system to try and start, you are sending a massive surge of electricity into a dead-end motor, which can melt wires, damage the electrical panel, and cause further hazards.

The Heat Factor: Oil Breakdown and Loss of Lubrication

If a seized compressor is caused by metal-on-metal friction, the logical next question is: why did the friction happen in the first place? The answer almost always comes down to heat and the degradation of the internal lubricating oil.

Just like a car engine needs motor oil to protect its pistons, an AC compressor relies on specialized refrigerant oil to coat its moving parts. This oil travels through the system alongside the refrigerant, constantly bathing the internal mechanisms to ensure smooth, frictionless operation. However, this oil is highly sensitive to extreme temperatures.

With the Puget Sound region experiencing increasing summer Cooling Degree Days (CDD), older residential units that were not originally designed for heavy, continuous cooling loads are being pushed to their absolute limits. When an AC unit runs non-stop during a prolonged heatwave, the compressor overheats. Sustained, extreme heat fundamentally changes the chemical structure and viscosity of the refrigerant oil. It becomes thin, sludgy, and loses its ability to coat and protect the metal.

Once the oil breaks down, a destructive chain reaction begins. The lack of lubrication leads to increased friction between the moving parts. That friction generates even more internal heat, which further destroys whatever viable oil is left. This vicious cycle accelerates rapidly until the internal components reach a critical temperature and physically lock together.

This is why complete compressor failures so frequently occur during the early fall transition after peak summer load. The system may have barely survived the hottest weeks of August, but the cumulative wear, tear, and oil degradation finally reach a breaking point just as the season begins to change.

Acid Burnout: The Hidden Destroyer of Compressor Windings

While the physical locking of the metal parts is catastrophic, there is an equally destructive chemical process that often accompanies a seized compressor: acid burnout. Understanding this hidden destroyer is key to grasping why a seized compressor usually condemns the entire outdoor unit, rather than just a single part.

Air conditioning systems are supposed to be completely sealed, closed-loop environments. However, if microscopic amounts of moisture enter the system—often through microscopic leaks, degraded seals, or improper charging techniques—that moisture mixes with the chemical refrigerant. Under the extreme heat generated by a struggling, unlubricated compressor, the moisture and refrigerant react to create highly corrosive acids.

The progression of acid burnout:

1. Acid Formation: The extreme internal heat bakes the moisture and refrigerant mixture, forming a potent acid inside the sealed lines.

2. Insulation Degradation: The compressor's electrical motor relies on copper windings that are coated in a thin layer of electrical insulation. The acid aggressively eats away at this protective coating.

3. The Short Circuit: Once the insulation is dissolved, the bare copper wires touch each other or the metal casing. This causes a massive internal short circuit—the "burnout" phase.

4. System-Wide Contamination: The burnt, acidic sludge is pumped throughout the entire copper line set, contaminating the indoor evaporator coil and all connecting pipes.

When an acid burnout occurs during the early fall transition after peak summer load, the damage is not contained to the outdoor unit. The corrosive sludge compromises the entire refrigerant loop. This is why our Greenhead Heating & Electrical LLC technicians always emphasize that a simple part swap is impossible; the acidic contamination must be meticulously flushed from the lines, or it will immediately destroy any new equipment connected to it.

Transparent Diagnostics: How We Prove the Compressor is Locked Up

When a system repeatedly trips the breaker, a true professional does not just glance at the unit and guess that the compressor is dead. Because a seized compressor is a major, costly failure, the diagnostic process must be rigorous, transparent, and proven through hard data.

Our team's approach to servicing the Kent HVAC service area relies on educational transparency. We believe in showing customers the physical meter readings and explaining the proof of the burnt-out compressor, rather than simply telling them it is broken. By walking you through the data, you can see exactly what our technicians see happening inside the black box.

The step-by-step diagnostic process:

1. Testing the Dual Run Capacitor: The technician will first safely discharge and test the start capacitor using a multimeter. A failed capacitor cannot give the compressor the jolt it needs to start, which can perfectly mimic the symptoms of a seized unit. Ruling out this inexpensive electrical part is always the first step.

2. Evaluating the Contactor: Next, the technician inspects the contactor, the heavy-duty switch that pulls high-voltage power into the unit. If the contactor is pitted, burned, or failing to close properly, power will not reach the compressor.

3. Measuring Locked Rotor Amps (LRA): If the capacitor and contactor are healthy, the technician uses an amp clamp meter to measure the current draw when the unit tries to start. If the meter spikes to 70, 80, or 100+ amps instantly before the breaker trips, it is undeniable proof that the motor is fighting a locked physical mechanism.

4. Testing Continuity to Ground: Finally, the technician tests the compressor's electrical windings for continuity to the copper ground. If the meter beeps or shows a connection, it proves that the internal electrical insulation has melted away due to acid burnout, and the motor has short-circuited to the steel casing.

By taking these specific, measured steps, a licensed professional can definitively prove that the compressor has failed, giving you the confidence and clarity needed to decide on the next steps.

The Verdict: Evaluating Repair vs. Replacement Reality

Once a compressor is confirmed to be locked up or burned out, homeowners inevitably ask if it can be repaired or "unseized." The short answer is that while certain stop-gap measures exist, a true mechanical lock-up requires major intervention.

There is a common myth that a "hard start kit" can permanently fix a seized compressor. A hard start kit is a powerful secondary capacitor that delivers a massive electrical kick to the motor. In some cases, if the compressor is just beginning to stick due to age, a hard start kit can force it to turn over. However, if the internal parts are physically welded together from metal-on-metal friction, no amount of extra electricity will break them free. The unit will simply draw even more amperage and trip the breaker faster.

Replacing a compressor is one of the most labor-intensive tasks in the HVAC industry. It requires a licensed professional to safely recover the existing refrigerant, cut the old compressor out with a torch, meticulously flush the lines to remove all acidic sludge, weld a new compressor into place, pressure test the system with nitrogen, pull a deep vacuum to remove all moisture, and finally recharge the system with fresh refrigerant.

Because of the massive labor involved, installing a new compressor in an older, out-of-warranty unit often makes little financial sense. The cost of the major overhaul frequently approaches the cost of an entirely new condensing unit. In these scenarios, a full system replacement is usually the more logical, reliable choice.

Our installation team sees this evaluation process frequently. Recently, a homeowner reached out to Greenhead Heating & Electrical LLC when they needed a new AC and furnace installed after their aging system completely failed. A technician evaluated the existing equipment, thoroughly explained all available options—including how generic utility incentive programs may apply to qualifying high-efficiency installations—and recommended a comprehensive solution without pressure. The result was a high-quality installation of a new AC and furnace completed exactly on schedule, restoring reliable comfort to the home.

When you are facing this level of catastrophic failure, exploring full AC installation and replacement ensures you are investing in modern efficiency rather than pouring money into a compromised, aging system.

Breaking the Cycle: How to Prevent Future Compressor Failures

The most important takeaway from a compressor post-mortem is that these catastrophic failures are largely preventable. By understanding how heat, friction, and oil breakdown destroy the internal mechanisms, you can take proactive steps to protect your equipment and break the cycle of premature failure.

Routine strategies to protect your compressor:

• Keep the Condenser Coils Clean: The outdoor unit's primary job is to release heat. If the aluminum fins are clogged with dirt, pollen, and yard debris, the heat gets trapped inside. This forces the compressor to run hotter and longer, accelerating the breakdown of the lubricating oil. Gently washing the coils seasonally drastically reduces this strain.

• Monitor Refrigerant Levels: An AC system should never "use up" refrigerant; if the levels are low, there is a leak. Low refrigerant means less cooling capacity, forcing the compressor to run continuously to meet the thermostat's demands, leading directly to overheating.

• Pre-Season Electrical Checks: Having a professional from Greenhead Heating & Electrical LLC test your capacitors and contactors before the heavy cooling season begins ensures the compressor is getting the clean, efficient power it needs to start effortlessly.

• Address Airflow Restrictions: Dirty indoor air filters force the outdoor unit to work twice as hard to push conditioned air through the home. Changing filters regularly is the easiest way to reduce mechanical strain.

Furthermore, if you are running an older system on outdated electrical infrastructure, the unit may be struggling with voltage drops that cause the motor to run hot. Exploring options like retrofitting central AC in older Kent homes can ensure your home's electrical panel is fully equipped to support modern, high-efficiency cooling equipment without starving the compressor of power.

Frequently Asked Questions About Compressor Failures

What happens when an AC compressor seizes?

When an AC compressor seizes, its internal mechanical parts physically lock together due to extreme friction and a lack of lubrication. The electrical motor attempts to turn these jammed parts, causing a massive spike in electrical current. This dangerous power draw instantly trips the home's circuit breaker to prevent electrical fires, rendering the air conditioning system completely inoperable.

Can a locked up AC compressor be repaired?

A physically locked up compressor cannot be repaired internally; the sealed unit must be completely replaced. While a technician can sometimes use a hard start kit to force a sticky compressor to turn over temporarily, true mechanical seizures involving fused metal parts are irreversible. Replacing the compressor is a major procedure that requires a licensed HVAC professional to manage high-pressure refrigerants and complex welding.

Why did my AC compressor burn out?

Compressor burnout typically occurs when extreme internal heat breaks down the refrigerant oil, leading to severe mechanical friction. Additionally, if moisture enters the sealed system, it mixes with the refrigerant under high temperatures to create corrosive acids. These acids eat away the electrical insulation on the motor windings, causing a catastrophic internal short circuit.

Will a hard start kit fix a seized compressor?

A hard start kit will not permanently fix a truly seized compressor. While these kits provide an extra boost of electrical power that can help an aging, sluggish motor start up, they cannot break apart internal metal components that have physically welded together from friction. If a compressor is fully locked, adding a hard start kit will simply cause the breaker to trip faster.

How do you know if your AC compressor is locked up?

The most common sign of a locked up compressor is the outdoor unit repeatedly tripping the circuit breaker the exact moment it tries to turn on. A licensed technician can confirm the diagnosis by using an amp clamp meter to measure the Locked Rotor Amps (LRA); a massive, instantaneous current spike proves the motor is fighting a jammed mechanism.

Why does my AC keep tripping the breaker immediately on startup?

An AC that trips the breaker immediately on startup is drawing far more electrical current than the circuit can safely handle. This is usually caused by a grounded compressor (where internal wires have short-circuited to the metal casing) or a mechanically seized compressor that is pulling massive amounts of power trying to force frozen parts to move.

Moving Forward With Confidence in Your Home's Comfort

Understanding the physical reality of a seized compressor empowers you to make smart, confident decisions about your home's HVAC system. When you know exactly how heat, friction, and acid burnout destroy the internal mechanics, it becomes clear why a major failure requires a comprehensive, professional solution rather than a quick fix.

The best way to avoid the stress of a sudden breakdown and a tripped breaker is to prioritize proactive care. By keeping the system clean, monitoring electrical components, and ensuring the refrigerant oil is never pushed past its breaking point, you can significantly extend the lifespan of your equipment. If you suspect your system is struggling, or if you want to get ahead of seasonal wear and tear, scheduling routine AC maintenance in Kent is the smartest step you can take to protect your investment and maintain reliable comfort year-round.
